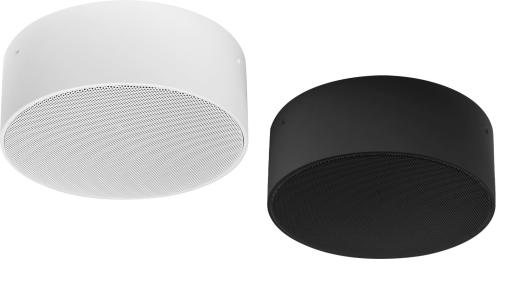

Surface-Mount Speaker DA180

Key Features

✅ Slim, circular design (Ø 180 mm, height 70 mm) – blends seamlessly into any environment

✅ Flexible mounting – works as wall-mounted or ceiling speaker

✅ Perfect for rooms without false walls – ideal complement to DE series in-wall speakers

✅ Enhanced bass possible – pairs well with SUB 20 / SUB 20 A subwoofers

✅ Two versions available – 8Ω for HiFi systems or 100V for PA applications

Whether in restaurants, retail spaces, hotels, or trade shows, the DA 180 provides even, well-

Driver: 3" full-range with electronic linearization

Dimensions: Ø 180 mm, height 70 mm (slim design)

Power Handling: 40W RMS

Impedance: 8Ω or 100V line options

Frequency Response: 120 Hz – 18 kHz (±3 dB)

Mounting: Wall or ceiling (universal bracket)

Connections: Spring-clip terminals for easy installation

Material: High-quality impact-resistant plastic

Finish: White (RAL 9016) or Black (RAL 9005)

Weight: 1.1 kg

Applications:

Hospitality & hotels

Retail spaces & exhibitions

Trade shows & events

System Integration: Pairs with SUB 20 / SUB 20 A subwoofers for extended bass
