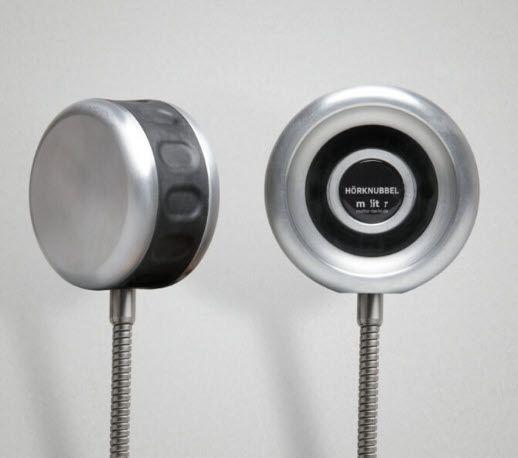

Handset EH70
EH70 stainless steel handset
Operation is extremely simple: the handpiece is held securely in its base by a powerful magnet. As soon as it is removed, audio playback starts automatically - triggered by a precise reed contact. When the handset is put back, playback stops immediately.
Robust and maintenance-free for continuous use
Brilliant sound is provided by a high-quality speaker that reproduces speech and music without distortion and with a broad frequency spectrum. The listening knob can be connected directly to molitor media players or comparable signal sources - without an additional amplifier. It therefore impresses with its simple integration and excellent sound quality in any environment.

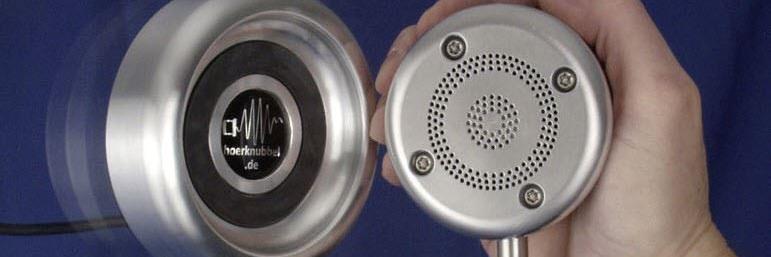

Thanks to the innovative rubber band, the ear bud is comfortable to hold and offers optimum grip even during prolonged use. It is easy to clean and disinfect after use - ideal for hygiene-sensitive environments. Its well thought-out design also enables quick disassembly, whether for a thorough complete cleaning or to replace internal parts. Thanks to this maintenance-friendly design, the ear knob can be completely overhauled in a very short time and used again in as-new condition. It thus combines durability with easy maintenance - for lasting reliability in daily use.
Reliable even outdoors
The mounting plate is positioned with two concealed screws for installation. The combined audio/switching cable runs through an additional hole. The connection cable is securely protected in the tension-resistant stainless steel flexible conduit.
Scope of delivery:
Handset with magnetic holder, operating and installation instructions, mounting material
Flexible assembly & customised design
Handset: Weight: approx. 350 g, diameter: 77 mm, height: 57 mm
Magnetic holder: Weight: 380 g, Diameter: 98 mm, Height: 28 mm
Speaker: Impedance: 32 Ohm, Maximum load capacity: 0.1 W
Switching power: 10 W. Switching voltage: max. 175 V (AC/DC)
Switching current: 0.5 A
Metal flexible conduit: Length: 90 cm / 120 cm (options).
Audio cable: Length: 240 cm
Version: open cable ends, 2-pole
Handset EH70
| Item number: | 100017 |
EH70 Hörknubbel – Robuster Einhandhörer für Museen & öffentliche Räume. Edelstahlgehäuse, magnetische Basis mit Reed-Kontakt (automat. Start/Stop). Hochwertiger Lautsprecher (32 Ohm, 0,1 W), direkt an Mediaplayer anschließbar. Gummibanderole für sicheren Halt, leicht zu reinigen. Montage mit Halteplatte & Flexschlauch (90/120 cm). Lieferumfang: Hörer, Magnethalter, Montagematerial. Maße: Ø77×57 mm, 350 g.
417,00 €
Inkl. 19 % USt. zzgl. Versand
Sofort ab Lager
Technical data at a glance
Frequency response: 150-20,000 Hz
Rated power handling: 4 watts | Music power handling: 10 watts
Impedance: 4 Ohm | Sound pressure level: 84 dB (1W/1m)
Material: Stainless steel & aluminium
Cable: armoured cable (900 mm), audio connection (200 cm), control output (20 cm)
Dimensions: Ø 80 mm, height 45 mm | bracket: Ø 100 mm, height 15 mm
Weight: 450 g (with bracket)
