Audio-Spoon horizontal mount
Handset EH30 horizontal mount
EH30 single-ear headset, horizontal surface mounting with sleeve, 5 cm wideband speaker, 50 Ohm nominal impedance, 2W rated power, 3W music power, 180-17000 Hz frequency range, 200 mm length, 300 g weight, 110 cm cable (optional longer), vandal-resistant stainless steel construction, hidden screw design, hygienic smooth surface, connection options: clampable, 6.3 mm or 3.5 mm jack plug.
250,00 €
Inkl. 19 % USt. zzgl. Versand
Sofort ab Lager
EH30 horizontal mount
The receiver offers a wide range of installation options that are perfectly tailored to your usage requirements, such as horizontal mounting on a table or display case.

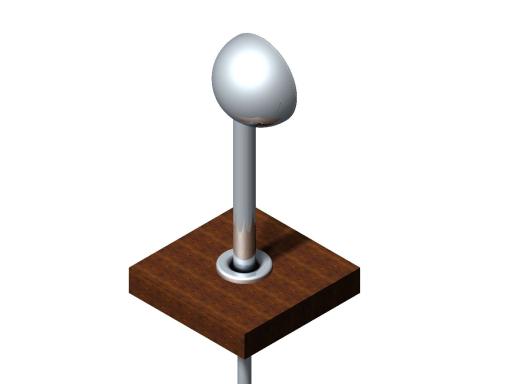

Guide sleeve: The receiver is simply inserted into a special guide sleeve that is firmly installed in the surface (e.g. display cases or table tops).
Simple operation: Visitors simply pull the handset out of the sleeve for use and reinsert it after use.
Secure hold: The guide sleeve ensures stable positioning and prevents loss or damage.
Connection and installation instructions
The high-quality metal hose is characterised by its particular robustness and durability. Due to its stable construction, tight bending radii are not possible. Please note the following for optimum installation:

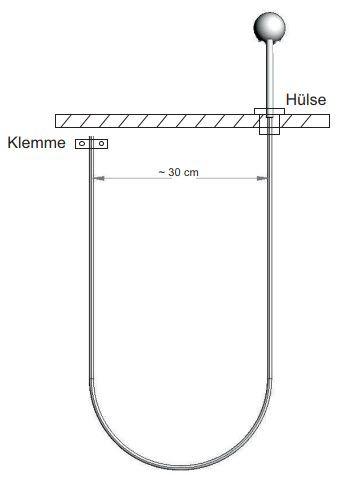

Positioning of the cable entry:
Position at a distance of 25-35 cm to the side of the handset
This ensures that the hose runs vertically downwards cleanly
Preparation for installation:
Arrange all components as a test before final drilling
Practically check the lateral offset
Optimise the position until the tube is ideally aligned.
