Sound Shower SSHP 120x20
SSHP 120x20
| Item number: | 100510 |
Aktivlautsprecher mit einer Panelgröße von 600x600 mm. Richtlautsprecher für die Audiowiedergabe in einem eingeschränten Bereich ohne die weitere Umgebung zu beinträchtigen.
690,00 €
Inkl. 19 % USt. zzgl. Versand
Sofort ab Lager

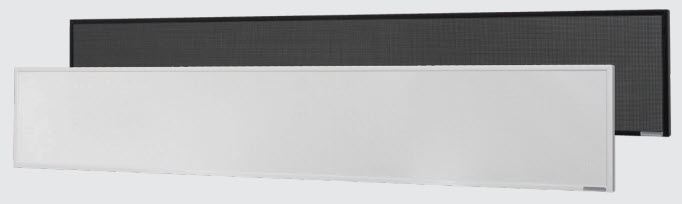

Panphonics Sound Shower SSHP120x20
The Panphonics Sound Shower SSHP120x20 is a high-quality, directional flat-panel loudspeaker designed for precise, localised sound reinforcement in demanding environments. Its directional sound dispersion makes it ideal for applications where clear audio reproduction without distracting stray noise is required - for example in museums, showrooms, reception areas, retail environments or digital information systems.
|
Acoustic performance |
Electrical properties |
Mechanical design & assembly |
|
Frequency response: 150 Hz - 20 kHz (±6 dB), offers a balanced sound with good mid-range and high-frequency reproduction sufficient for clear speech and music reproduction even in busy environments Distortion (THD): < 5 % at rated power - ensures clean, low-distortion sound reproduction Sound characteristics: Highly directional (‘sound shower’ effect) - the sound remains limited to a defined area, keeping neighbouring zones free of interference |
Nominal impedance: 8 Ohm - compatible with common audio amplifiers Recommended amplifier power: 20 - 150 watts - allows flexible adaptation to different sound reinforcement scenarios |
Support structure: Sturdy steel frame with perforated surface for optimum sound dispersion Mounting options: Wall mounting (optionally with tilt adjustment for optimum sound directivity) |
Dimensions: 1200 × 200 × 45 mm (height × width × depth)
Ambient conditions
Operating temperature: 0 °C to +40 °C - suitable for use in most indoor areas
Humidity: Up to 90 % (non-condensing) - robust enough for slightly humid environments
Targeted sound reinforcement without background noise
-
Museums and Exhibitions
Clear audio commentary for individual exhibits without disturbing other visitors
Ideal for interactive installations with spatially limited sound
-
Retail and Showrooms
Targeted product presentations with background music or advertising
No unwanted sound in neighbouring areas
-
Reception areas, maintenance areas
Discreetly displayed announcements or background music
Reduces acoustic interference in reverberant rooms
-
Reception areas, maintenance areas
Precise voice output for kiosk systems or interactive displays
Prevents echo and feedback in public areas
