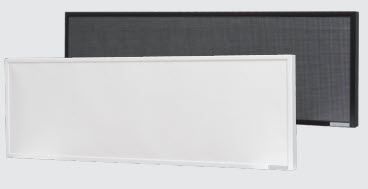

Sound Shower SSHP 60x20
SSHP 60x20
| Item number: | 100684 |
SSHA6020 | 601×601×55mm | 3.4kg | Active directional speaker with 1.3×1.3m sound zone (-10dB@3m) | 24V DC/2.5A | RCA input (10kΩ/0.9Vp-p) | Frequency response: 250Hz-16kHz | SNR >70dB | THD <0.05% | IP20 | 0°C to +40°C | Integrated basic amplifier |
504,00 €
Inkl. 19 % USt. zzgl. Versand
Sofort ab Lager
Ultra-directional sound transmission
The centrepiece of the SSHP60x20 is its innovative directional sound technology. With a dispersion angle of just 60° horizontally × 20° vertically, the speaker generates an extremely focussed sound beam. This feature enables:
Precise audio transmission exclusively to the desired zone
Minimised sound reflections and background noise in neighbouring areas
Optimum speech intelligibility even in noisy environments
✔ Targeted sound - no crosstalk between neighboring zones
✔ High speech intelligibility - even in noisy environments
✔ Easy installation - connection via amplifier & audio source (XLR/RCA)
✔ Automatic volume adjustment - responds to ambient noise
✔ Ultra-thin design (2-3 cm) - adapts elegantly to any architecture
✔ Color options: Black, white or cloud image (blue/white), special colors on request
Perfect for sophisticated acoustic solutions with discreet, high-quality sound.
Technical specifications Sound Shower SSHP60x20
Beam angle 60° (H) × 20° (V)
Frequency response 300 Hz - 20 kHz (±6 dB)
Max. Sound pressure level 90 dB @ 1m
Rated power 20W RMS (40W peak)
Impedance 8 Ohm / 100V Line
Operating temperature -20°C to +60°C
Protection class IP54 (dust and splash-proof)
Weight 0.9 kg
