Panphonicss Soundshower directional speakers
Panphonics loudspeakers enable crystal-clear speech reproduction even in noisy environments - without increasing the general noise level. In museums in particular, this creates a precisely defined audio zone in front of exhibits: The visitor only hears the description directly at the artwork; when leaving the zone, the sound fades out naturally. By specifically optimizing the frequency for human hearing, our systems overcome even strong ambient noise.
For over 20 years, Panphonics has been setting global standards for directional audio solutions. Unlike many of our competitors, we deliberately do not use ultrasonic technology. Instead, we use the electrostatic principle for superior sound quality: less coloration, better impulse response and minimal distortion than comparable systems. The results are convincing: lightweight, unobtrusive speakers with simple installation and robust durability - perfect for demanding long-term applications.
Unique Selling Poin
Unique speech intelligibility in noisy environments
Precise audio zones without disruptive sound propagation
Electrostatic technology for natural sound
Proven robustness for continuous operation
Minimalist design for harmonious integration
-
Targeted sound transmission
Narrow beam angle
-
Excellent speech intelligibility
Perfect for announcements and voice-overs
-
Discrete, architecturally integrated design
Ceiling mounting (recessed) or wall mounting
-
Robust and durable
Aluminum housing, IP protection
-
Simple installation
in existing audio systems (100V/8Ω)
Perfect for Demanding Audio Solutions

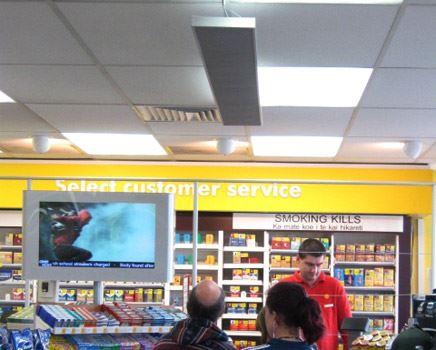

Whether in museums (audio guides), retail (targeted advertising), airports (announcements), or offices (ambient sound)—the Sound Shower speakers create clear audio hotspots without interference. Even when multiple units are installed side by side, the sound remains isolated.

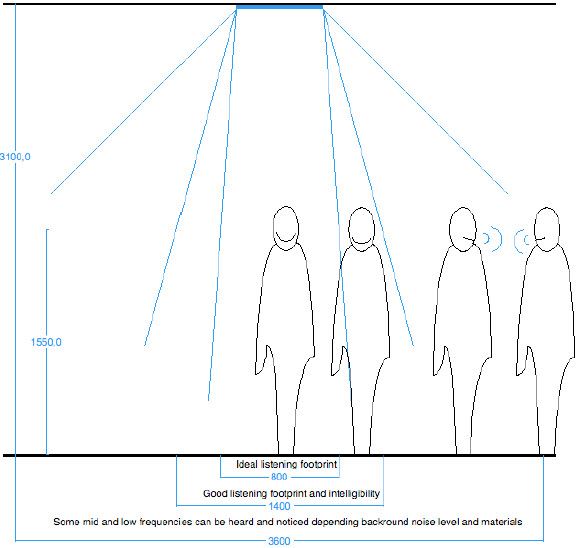

The following illustrations show the sound propagation under the Soundshower loudspeaker. It should be noted that the real sound propagation is also influenced by reflections from the floor and walls and can therefore also be amplified outside the active sound room.

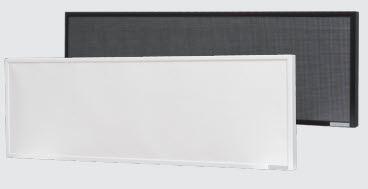

Model variants of the Soundshower speakers
Two versions available:
Housing: Aluminum frame. Flat, lightweight design. High directionality
SSHP: Sound Shower Passive
External amplifier
and

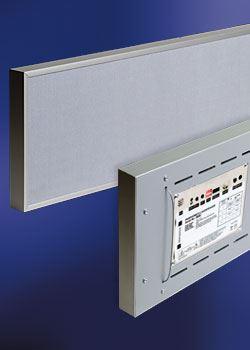

SSHA: Sound Shower Active with Integrated basic amplifier
.
CUSTOM: Special sizes (100x20cm to 300x20cm) are available on request
.
Available sizes & colors
Passive models (SSHP):
60×20 cm | 60×60 cm | 120×20 cm | 180×20 cm
Active models (SSHA):
60×60 cm | 120×20 cm
Colors: Black / White
Model variants of the Soundshower speakers
|
Model |
Dimensions |
Cover Area Opening angle |
Weight |
|
SSHP 6020 |
601 × 204 × 34 |
1,2 m × 2,3 m |
1,4 |
|
SSHP 60x60 |
601 × 601 × 34 |
1,3 m × 1,3 m Ca. 4° (each side) |
6,6 |
|
SSHP 120x20 |
1195 × 204 × 34 |
1,4 m × 2,3 m Narrow side: 4° · Wide side: 16° |
2,7 |
|
SSHP 180x20 |
1790 × 204 × 34 |
1,4 m × 2,3 m Narrow side: 4° · Wide side: 16° |
3,6 |
Technical Data of active Soundshower
|
Model |
Dimensions |
Cover area |
Weight |
|
SSHA 60x60 |
601×601×55 |
1,3×1,3 m |
2,9 |
|
SSHA 120x60 |
1197×206×55 |
1,3×1,3 m (4° opening angle) |
3,4 |
We will be happy to advise you on all installation issues. You can also receive a speaker for testing on request. Simple installation: Connect the speakers to an amplifier using a speaker cable, connect the power supply unit and select your audio source (XLR or RCA). Note: You will need a separate amplifier - or you can test the speakers directly with an active model that already has an integrated amplifier.
