RL110 A
RL 110 AX - Intelligent directional loudspeaker with motion sensor
The active RL 110 A (20 watts) with supercardioid polar pattern (80°) enables targeted sound reinforcement even in reverberant rooms. Thanks to the 3" full-range chassis and the high input sensitivity (-6 dBU), it can be connected directly to an MP3 player or PC.
Practical features:
- Flexible mounting: ceiling suspension or with WH 110 L bracket (wall/ceiling)
- Simple operation: stereo cinch input, volume control, auto ON/OFF switch
- Clear sound: 150 Hz high-pass filter for optimum speech reproduction
Ideal for: Sales rooms, museums, trade fairs - wherever precise sound control is required.
The scope of delivery includes: RL 110 A in white or black
Technical Highlights
???? 20-watt amplifier with auto ON/OFF function
???? Stereo cinch input for external media players or computers

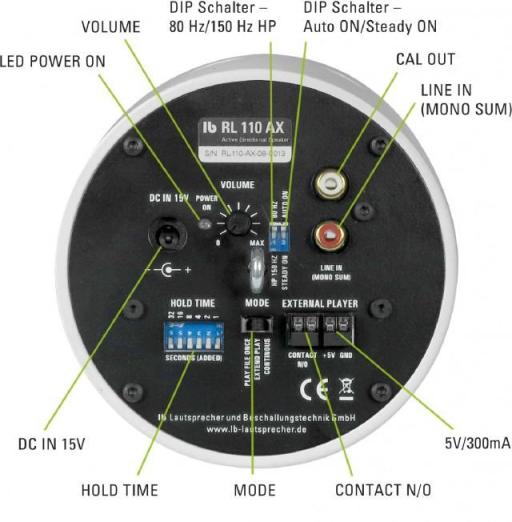

???? Practical operation - all controls & connections (volume, power LED etc.) on the back.
RL 110 A directional loudspeaker - Precise sound reinforcement for defined listening zones
The active RL 110 A (20 watts) with supercardioid characteristic (80°) enables targeted sound reinforcement even in reverberant rooms. Thanks to its 3" full-range chassis and high input sensitivity (-6 dBU), it can be connected directly to MP3 players or PCs.
Practical features:
- Flexible mounting: ceiling suspension or with WH 110 L-bracket (wall/ceiling)
- Simple operation: stereo cinch input, volume control, auto ON/OFF switch
- Clear sound: 150 Hz high-pass filter for optimum speech reproduction
Ideal for: Sales rooms, museums, trade fairs - anywhere where precise sound control is crucial.
Scope of delivery: RL 110 A in white or black
Acutics Properties
✔ Principle: full-range directional speaker with supercardioid characteristic
✔ Chassis: 3" full-range system
✔ Frequency range: 190 Hz - 19 kHz
✔ Impedance: 8 Ohm
✔ Dispersion angle: 80°
Performance data
- Load capacity: 20 watts (RMS) / 40 watts (program)
- 100V version: 2.5/5/10 watts switchable
- Sound pressure: 83 dB (1W/1m), max. 96 dB (93 dB at 100V)
Mechanical properties
- Dimensions: Ø110 × 190 mm
- Weight: 1.0 kg
- Housing: Aluminum with powder-coated perforated sheet metal
- Fastening:
Rear M4 thread with eyebolt
Lateral M6 threaded bushes for WH 110 bracket
