RL110
The RL 110 directional loudspeaker is a specially developed loudspeaker system for targeted sound reinforcement of limited listening zones without disruptive sound emission into the wider surroundings. For such applications, the RL 110 offers a supercardioid directional characteristic over the entire frequency range. The RL 110 is either suspended from the ceiling or aligned to the listening zone using a ball joint bracket. Areas of application are museums, exhibition rooms, sales rooms, public display
Full-range directional speaker with supercardioid polar pattern, electronically corrected
Frequency response 190 ... 19,000 Hz
Nominal impedance 8 Ohm
Power handling RMS 20 watts, program 40 watts
Sound pressure level 83 dB (1W/1m), maximum 96 dB
Dispersion angle 80° conical (-6dB)
Dimensions d=110 mm, length 190 mm
Weight 1.0 kg
Mounting points: Rear suspension point, M6 threaded inserts on the side for bracket
Connections: Screw terminals or pressure terminals (RL 110 T)
Finishes: White RAL 9010, silver RAL 9006 and with integrated 100V transformer,
Power 2.5 / 5 / 10 watts
8 Ohm or 100 V version

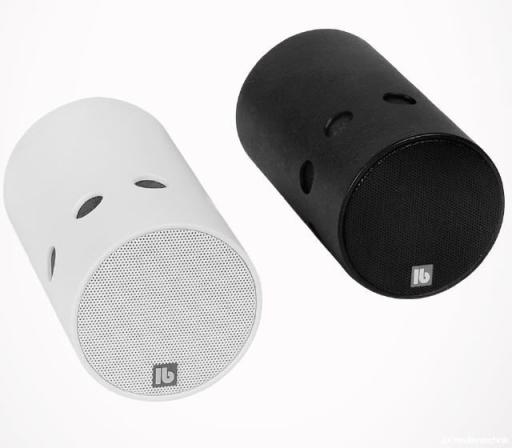

Standard color: white
Optional: color black and 100 V version (2.5/5/10 watts)
