Acouspade XLS High SPL Stereo
Key Features Acouspade XLS
Stereo Soundfield: Dedicated L/R channels for spatial audio
High SPL (100dB @1kHz/1m)
External Amp (24V/2.7A) for flexible setups
Rugged Design: IP54-rated, -20°C to 60°C operation
Easy Connectivity: RCA inputs, 4-pin speaker terminal
The Acosuapde-XLS is the only hyper-directional speaker on the market with a stereo sound field distribution. The dispersion area is divided into a left and a right area, which emit the left and right audio channels respectively. This enables an accurate stereo signal presentation and creates an authentic reproduction of binaural recordings without the need to use headphones.
Input voltage: 230V or 120V, 50/60 Hz
Power supply: 24V/2.7A
Dimensions of the Acouspade-XLS radiator: 600 x 300 mm; thickness: 21 mm

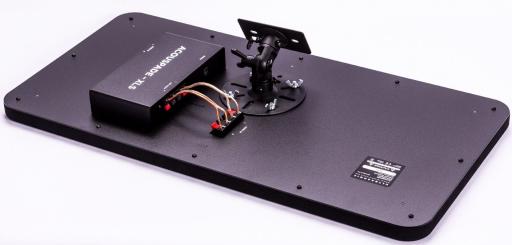

Dimensions of the Acouspade XLS amplifier: 173 x 84 x 38mm
Weight of the Acouspade XLS loudspeaker: 2900g
Weight of the Acouspade XLS amplifier: 650g
Wall/ceiling mount: 500g
Temperature: -20°C to 60°C (-4°F - 140°F)
Humidity: 0 - 95% (non-condensing)
Ultrasonic and DSP processing
Carrier frequency: approx. 40 kHz
Modulation method: AM
Input impedance: 10 kOhm
Typical input signal: 160 mVrms
Frequency response: 150 Hz to 16 kHz
Maximaler Lautsprecherausgang: 100 db @ 1kHz/1meter
Audio-Eingang: 2xRCA (L/R)
Stromeingang - Klinkenanschluss
Audioausgang: Lautsprecheranschluss - 4-polig (L/R)
Anschlüsse - Emitter
Audioeingang: Lautsprecheranschluss - 4-polig (L/R)
Key Features
Stereo Soundfield: Dedicated L/R channels for spatial audio
High SPL (100dB @1kHz/1m)
External Amp (24V/2.7A) for flexible setups
Rugged Design: IP54-rated, -20°C to 60°C operation
Easy Connectivity: RCA inputs, 4-pin speaker terminal
Acouspade XLS High SPL Stereo
| Item number: | 246252 |

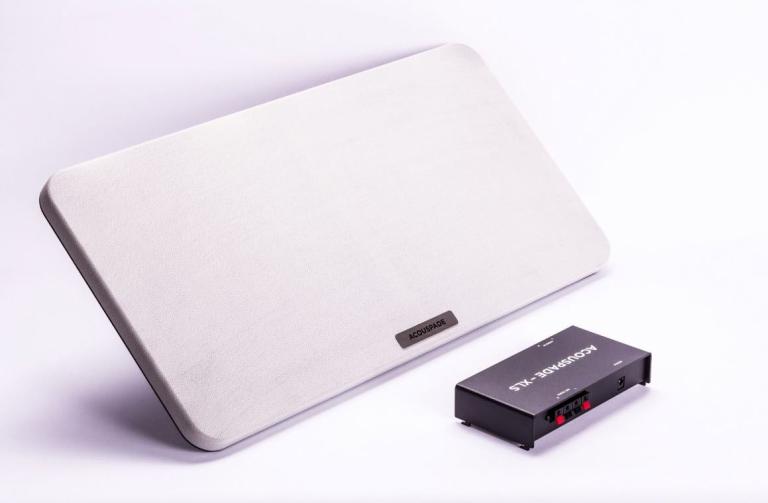

The Acouspade-XLS pairs a 600×300×21mm aluminum emitter panel (2.9kg) with an external Class-D amp (173×84×38mm/650g). Specs: 40kHz carrier (AM), 150Hz-16kHz range, 100dB SPL @1kHz/1m, 10kΩ impedance. Powered by 24V/2.7A PSU (120/230V), operates at -20°C to 60°C
0,00 €
Inkl. 19 % USt. zzgl. Versand
Sofort ab Lager
