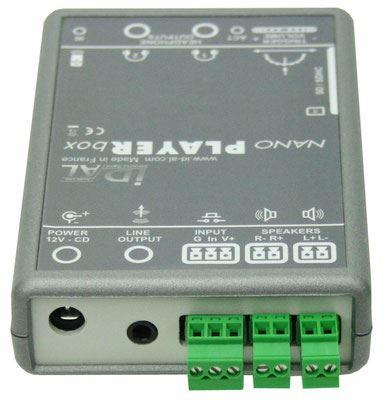

Nano Player Box
Its versatile outputs
Two headphone jacks, a line-out, and a built-in amplifier – make it the ideal all-in-one solution for almost any project involving sound. Programming is done without complicated software: simply place the audio files on the SD card and the Nanoplayer is ready to go.
Your advantages at a glance:
Plug & Play: Simplest setup without software. Playback starts automatically or is triggered by a signal.
.
Versatile Output Options: Two headphone outputs (3.5mm jack), one line-out, and an integrated 2x 8W amplifier for passive speakers.
.
Robust Control: Triggering via physical contact closure (GPI) or optional IR remote control.
.
Compact: The small housing fits into any installation.
Audio:
Supported Formats: MP3 stereo (MPEG 1/2 Layer 3, 32 - 128 kbit/s, CBR & VBR), WAV stereo (16 Bit, 44.1 kHz)
Integrated Stereo Amplifier (box + version): 2 x 8 W @ 8Ω (THD 1%), 2 x 13 W @ 4Ω (THD 1%)
Line Output: Stereo mini-jack (3.5mm, 0dB)
Headphone Outputs: 2x stereo mini-jack (3.5mm, 250mW @ 8Ω)
Connections & Control:
Trigger Input: 1x GPI (contact closure via Phoenix terminal)
Control: Infrared sensor (for optional remote control), rotary encoder for volume & menu
Amplifier Outputs: Phoenix terminals (3.81 mm) for speakers
Display: Status LED
Storage & Playback:
Storage Media: SD card (64MB - 4GB, FAT16/FAT32), SDHC card (from 4GB, FAT32)
Organization: Max. 999 files in root directory
Trigger Options: Automatically on Power-On, via contact signal (GPI), IR remote control
Power Supply:
Operating Voltage: 12V DC (10V - 15V range)
Power Consumption:
In operation (amplifier off): ~70 mA
In operation (amplifier on): up to ~2 A (volume dependent)
Mechanical:
Dimensions (W x H x D): 75 x 25 x 110 mm (without Phoenix connectors), 75 x 25 x 125 mm (with connectors)
Weight: 110 g
Scope of Delivery:
Nanoplayer box (+)
External power supply (45W, 12V DC)
Nano Player
| Item number: | 236235 |
The Nanoplayer box (+) plays MP3/WAV from SD cards. Starts automatically or is activated via trigger input/IR remote. Outputs: 2x headphone, line-out, 2x 8W amplifier. Ideal for interactive audio installations in museums or at the point of sale.
