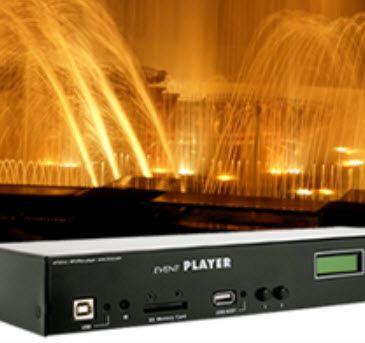

Eventplayer EP220
All-in-One Show Control: Synchronizes audio (MP3/WAV), DMX lighting control, and trigger signals with frame accuracy in a single device.
Comprehensive Control Options: Start shows automatically, by schedule (scheduler), via Ethernet, RS232, or through external sensors on the 8 input contacts.
Easy Show Creation: Use the included software to intuitively program your light and event sequences visually on a PC, perfectly timed to the music.
Robust Performance: Made for permanent installation. Operates at 0-60°C and designed for 24/7 continuous operation.
Maximum Flexibility: 8 optically isolated inputs (GPI) and 8 MOSFET outputs (GPO) for controlling other devices, all synchronized to audio playback.
Fields of Application:
Ideal for permanent installations requiring perfect synchronization:

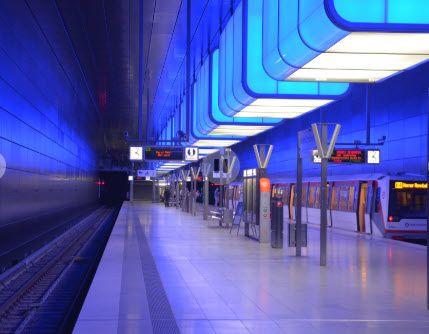

Architectural lighting and monument illumination
Musical fountains
Theatrical window displays and trade show booths

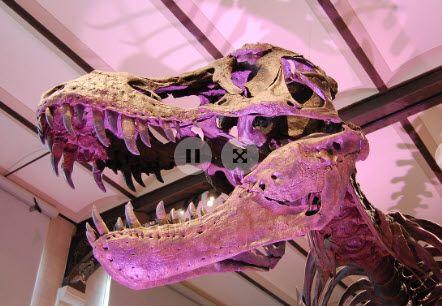

Escape games, adventure golf, and theme parks (talking animatronics)
Event venues and shows
Eventplayer EP320
| Item number: | 246174 |
The Event Player mkII EP230 is a professional show controller. It plays audio and controls DMX lighting sequences with frame accuracy. With scheduler, 8x GPI, 8x GPO, Ethernet & RS232. Ideal for synced shows in permanent installations.
860,00 €
Inkl. 19 % USt. zzgl. Versand
Sofort ab Lager
Audio:
Supported Formats: MP3 (mono/stereo, 32-320 kbit/s, CBR/VBR), WAV (16-Bit, 44.1/48 kHz)
Integrated Amplifier: 2 x 19 W @ 4Ω (THD+N 10%), 2 x 15 W @ 4Ω (THD+N 1%)
Audio Outputs: Stereo RCA Line-Out (0 dBu), Aux Input (3.5mm jack)
Lighting Control:
DMX Output: 1x XLR3 (female), frame-accurate sync to audio
Interfaces & Connections:
Communication: Ethernet (10/100 Mbps, FTP server, NTP client), RS232
Trigger Inputs (GPI): 8x optically isolated inputs (Phoenix terminals)
Control Outputs (GPO): 8x MOSFET outputs (500 mA, max. 20V, Phoenix terminals)
Other: USB Host (for storage stick), microSD card slot, IR sensor
Control & Programming:
Show Creation: Included PC software (visual, intuitive programming)
Scheduler: Time and date controlled scheduling
Display: LCD display (2x16 characters), status LED
Control: Rotary encoder with push-button function
Power Supply:
Input: 12V DC (external power supply, 100-240V AC input)
Power Consumption:
Playback (amplifier off): up to 170 mA
Playback (amplifier on): up to 2 A
Mechanical:
Dimensions (W x H x D): 143 mm (1/3 19") x 44 mm (1U) x 208 mm (with terminals)
Weight: 543 g (with terminals)
Operating Temperature: 0 °C to +60 °C
