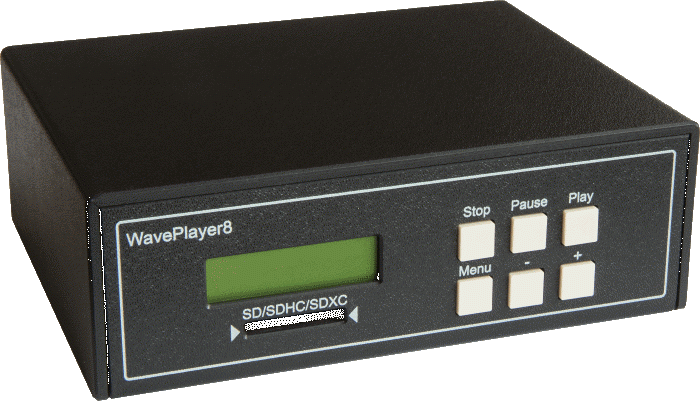

8-channel audio player
8-channel audio player for multichannel WAV files up to 24-bit/48-kHz. With SMPTE timecode sync, RS-232 control and 5 playback modes. Ideal for museum installations and synchronous audio-video projects. Incl. PSU and 32GB SD card.
399,00 €
Inkl. 19 % USt. zzgl. Versand
Sofort ab Lager
True 8-Channel Playback: Plays up to 8 separate audio tracks synchronously from a single WAV file
Professional Audio Quality: Supports 44.1 kHz and 48 kHz with 16 or 24 bits for crystal-clear sound
Flexible Start Options: Manual, automatic on power-on, or via SMPTE timecode for perfect synchronization with video
Versatile Playback Modes: Single Play, Continuous, Random, Song Loop, and Album Loop for any application
Easy Integration: Compact dimensions (155x120x55mm) and comprehensive interfaces (RS-232, LTC timecode)
Complete Package: Includes 32 GB SD card and power supply - ready for immediate use
Technical Specification
Audio Properties:
Channels: 8 independent mono outputs
Format: RIFF WAV (PCM and WAVEX/Extensible)
Sample Rates: 44.1 kHz / 48 kHz
Bit Depth: 16-bit / 24-bit
Max. Level: 0 dBu (RCA outputs)
Output Impedance: 10 kOhm
Connections:
Audio Outputs: 8 x RCA (unbalanced)
Timecode: RCA input and output for LTC timecode (25 fps)
Control: Data port for RS-232 bus protocol
Storage: SD card slot (up to 32 GB)
Playback Features:
Start Modes: Manual, Auto (on power-on), Timecode
Play Modes: Single Play, Continuous Play, Random Play, Song Loop, Album Loop
Synchronization: SMPTE timecode (LTC) for video sync
General Specifications:
Power Supply: Included power supply unit
Dimensions (W x D x H): 155 x 120 x 55 mm
Operating Temperature: 0°C to +40°C
Storage Media: Compatible with SD cards up to 32 GB
Special Features:
Easy Operation: All 8 tracks in a single WAV file
Professional Quality: 24-bit audio support
Robust Housing: For continuous operation in installations
Plug & Play: Fully equipped for immediate use
Small Footprint: Compact design for flexible installation
